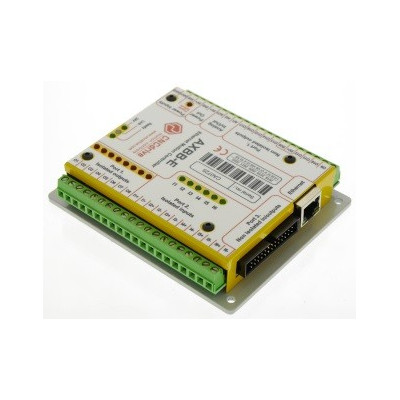

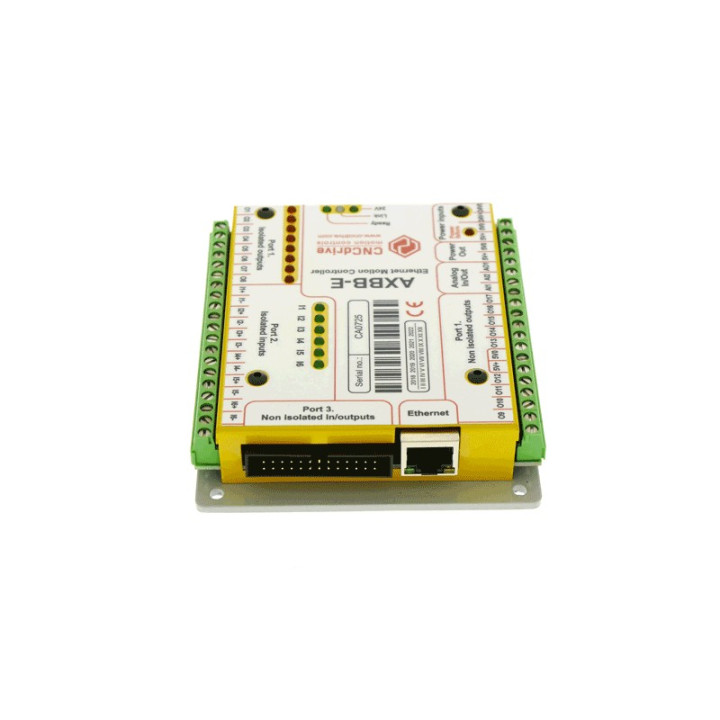

AXBB-E ethernet motion controller and breakout board combined controller
Cod produs: AXBB-E
AXBB-E ethernet motion controller and breakout board combined controller
| Features: - Complete motion controller and breakout board solution in a single board. - 8 optically isolated high speed N-channel power mosfet transistor outputs.(NPN) - 9 non-isolated buffered TTL outputs to control step/dir signals, laser driver etc. - Isolated charge pump output with power N-channel mosfet transistor. - 6 high speed optoisolator inputs. - 1 IDC26 non-isolated extension port with standard LPT port pinout (12 outputs and 5 inputs). - LED indicators on isolated I/Os. - Isolated I/Os are 24Volts capable.
Downloads for this product: . . 2.) UCx00 automatic installer application for Mach3
|
|
|
The following drawing shows an example connection setup of the AXBB-E controller:
|
|
-
Marca
-
ReferintaAXBB-E
-
In stoc1 Obiect
-
ConditieNou
-
MPNAXBB-E
Cod produs: AXBB-E
Un modul pe masura, realizat profesional si functioneza foarte bine.
